Description
CONSTRUCTION:

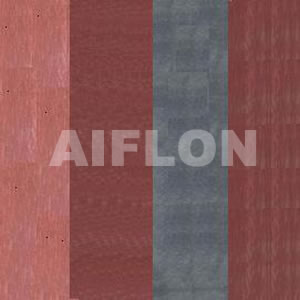

Aiflon CAF are made from selected asbestos fibre, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
PROPERTIES & APPLICATION:
|
Item
|
Style
|
|
3030
|
3035
|
3040
|
3045
|
|
Tensile strength¡YMpa
|
9
|
12
|
15
|
19
|
|
Aging
coefficient
|
0.9
|
0.9
|
0.9
|
0.9
|
|
Loss on ignition
¡ü%
|
30
|
30
|
28
|
28
|
|
Compressibility
¡Y%
|
12¡à5
|
12¡à5
|
12¡à5
|
12¡à5
|
|
Recovery
¡Y%
|
40
|
40
|
45
|
45
|
|
Density g/cm3
|
1.6~2.0
|
|
Tmax: ¡æ
|
300
|
350
|
400
|
450
|
|
Pmax: Mpa
|
3.0
|
4.0
|
5.0
|
6.0
|
|
Resistance
to media
|
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure.
|
Lower Grade 3015, 3025 on request
Available color: Purple, red, black, grey etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion (30**I)
Also available with anti-stick￡??30**S￡©or graphite coating (30**G)
FORMS OF SUPPLY:
Sheets:
2000¡á1500mm; 2000¡á4000mm;1500¡á1500mm;
1500¡á1000mm;1270¡á1270mm; 3810¡á1270mm
Thickness: 0.5~6mm
Cut gaskets
G3015~G3045
Dimensions according to drawings or and standards
