Aiflon oil-resisting OCAF, a cost effective oil resistance asbestos-rubber sheets, are made from selected asbestos fibre, natural rubber, filling material and dye.
Used in pipelines and apparatus of petrochemical & oil fields
PROPERTIES & APPLICATION:
|
Item
|
Style
|
|
3115
|
3125
|
3130
|
3140
|
|
Tensile strength¡YMpa
|
9
|
11
|
12.7
|
13
|
|
Compressibility¡Y%
|
12¡à5
|
|
Recovery¡Y%
|
35
|
45
|
50
|
50
|
|
Density g/cm3
|
1.6~2.0
|
|
Tmax: ¡æ
|
150
|
250
|
300
|
400
|
|
Pmax: Mpa
|
1.5
|
2.5
|
3.0
|
4.0
|
|
At 20# air lub oil,15~30¡æ for 30min
|
Tensile strength¡YMpa
|
8
|
9
|
10.8
|
26
|
|
Oil absorption¡ü %
|
23
|
23
|
23
|
9
|
|
Thickness increase%
|
|
20
|
15
|
15
|
|
At 75# gasoline /3# 15~30¡æ
for 5h
|
Tensile strength¡YMpa
|
6
|
7
|
7.9
|
14.7
|
|
Oil absorption¡ü %
|
22
|
22
|
22
|
15
|
|
Thickness increase%
|
|
25
|
25
|
20
|
|
Oil sealing Mpa
|
8
|
10
|
15
|
12
|
|
Resistance to media
|
Oils, refrigerators, solvents etc.
|
Special grade 3150 on request (500 ¡æ, 10Mpa)

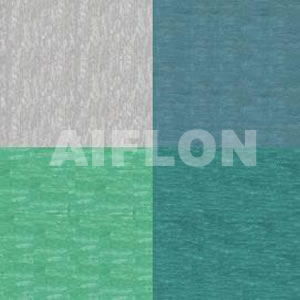

Available colour: Green, blue, white etc.
Available with tin steel, SS304 etc. wire mesh insertion (Style: 31**I)
Also available with anti-stick (Style:31**S) or graphite coating (Style: 31**G)
FORMS OF SUPPLY:
Sheets:
1500¡á4000mm, 1500¡á2000mm
1500¡á1350mm, 1500¡á1000mm
1270¡á3810mm, 1270¡á1270mm
Thickness: 0.4~6mm
Cut gaskets
G3115~G3040
Dimensions according to drawings or and standards.
